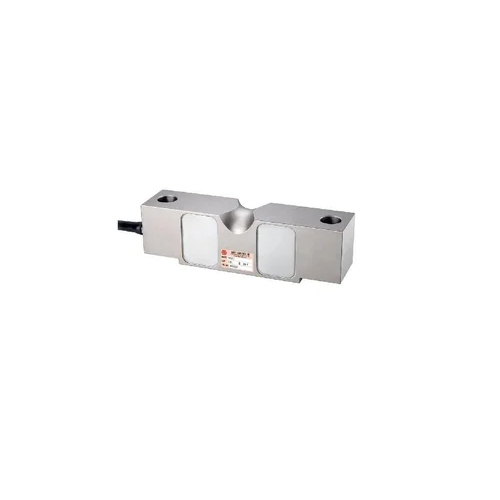

Weider Weigh Bridge Load Cell

Weider Weigh Bridge Load Cell Specification

Operate Method
Automatic

Capacity
23T and 30T Ton

Usage
Industrial

Color
White

Application
Weighbridge

Type
Load Cell

Weider Weigh Bridge Load Cell Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
30 Units Per Month

Delivery Time
2-7 Days

Main Domestic Market
All India

About Weider Weigh Bridge Load Cell

The Weider Weigh Bridge Load Cell is designed for industrial use in weighbridge applications. With a capacity of 23T and 30T, this automatic load cell is hermetically sealed and comes in a white color. It is certified by NTEP, OIML, and ATEX, ensuring accuracy and reliability. The load cell has an accuracy class of OIML R60 C3, with a zero balance of +/- 1% FS. It has a maximum safe overload of 200% FS and an ultimate safe overload of 300% FS. The recommended excitation voltage is 5 to 12V DC, with a maximum of 15V DC. The input resistance is 750 OHMS, output resistance is 700 OHMS, and insulation resistance at 50V DC is >= 5000 M Ohm. The compensated temperature range is -10 to +40 Deg C, and it comes with a 16 MTRS cable length.

Features	Hermetically Sealed
Load Cell Certifications	NTEP
Load Cell Certifications	OIML
Load Cell Certifications	ATEX
Accuracy Class	OIML R60 C3
Zero balance	+/- 1% FS
Maximum Safe Overload	200% FS
Ultimate Safe Overload	300% FS
Recommended Excitation Voltage	5 to 12V DC
Maximum Excitation Voltage	15V DC
Input Resistance	750 OHMS
Output Resistance	700 OHMS
Insulation resistance at 50V DC	>= 5000 M Ohm
Compensated Temperature Range	-10 to +40 Deg C
Cable Length	16 MTRS
