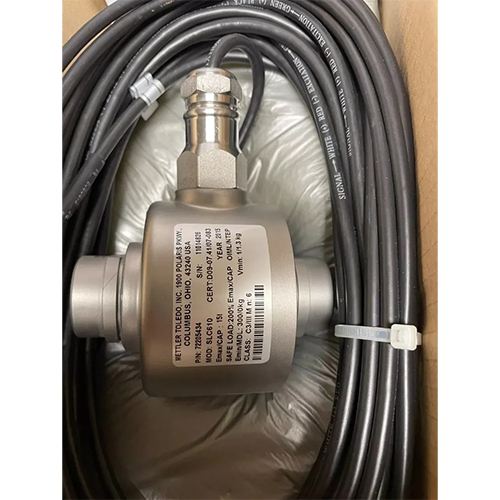

Shear Beam Load Cell For Weighing Scales

Shear Beam Load Cell For Weighing Scales Specification

Material
Stainless Steel

Color
Silver

Application
Floor scales

Usage
Industrial

Capacity
10 Ton Ton

Type
Load Cell

Shear Beam Load Cell For Weighing Scales Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
2-7 Days

Main Domestic Market
All India

Shear Beam Load Cell For Weighing Scales About

The Shear Beam Load Cell For Weighing Scales is a high-quality stainless steel load cell with a capacity of 10 Ton, designed for industrial floor scales. With an output sensitivity of 2.0 +/- 0.002 mV/V, zero balance of +/- 1% FS, and a maximum safe overload of 150% FS, this load cell ensures accurate and reliable weight measurements. It has a recommended excitation voltage of 5 to 15V DC and features an input resistance of 300 and an output resistance of 390. Additionally, the load cell has insulation resistance of >= 1000 M Ohm at 50V DC and is suitable for use in temperatures ranging from -10 to +40 Deg C.

Output Sensitivity(FS)	2.0 +/- 0.002 mV/V
Zero balance	+/- 1% FS
Maximum Safe Overload	150% FS
Recommended Excitation Voltage	5 to 15V DC
Input Resistance	300
Output Resistance	390
Insulation resistance at 50V DC	>= 1000 M Ohm
Compensated Temperature Range	-10 to +40 Deg C
